#470178 - 05/21/19 09:04 PM Re: Audya urgent problem [Re: Sandi]
country_man Offline
Member

Registered: 09/19/17
Posts: 37
Hi Sandi,

when your AUDYA freeze - look at EXIT button. "Shines" LED indicator (green) on it? I'v got similar problem, after reboot in one minute Audya freeze like on this video https://uloz.to/live/!zfHue8eSq/ketron-failed-avi

When this happend, maybe I have solution ...
_________________________
Nord Stage 2, Ketron SD90, Audya 4+5, SD1000, Roland E-A7, SC8820, Korg microarranger, Alesis Vortex, TC Helicon VL2, Soundcraft Ui12, JBL EON ONE (2), RCF312A

Top
#470180 - 05/22/19 02:39 AM Re: Audya urgent problem [Re: Sandi]
Sandi Offline
Member

Registered: 04/12/10
Posts: 141
I live in Croatia-Istria.
A guy that replaced the HDD done this many times so I presume that he know what he did.

Top
#470181 - 05/22/19 02:44 AM Re: Audya urgent problem [Re: Sandi]
Sandi Offline
Member

Registered: 04/12/10
Posts: 141
So Country man if the exit button shines the solution is to change the velocity curve?
I will check and let you know.

Top
#470221 - 05/22/19 11:17 PM Re: Audya urgent problem [Re: Sandi]
country_man Offline
Member

Registered: 09/19/17
Posts: 37
NO! It's a little bit tricky. First, Audya have to start without INIT or another error on display! So your HDD must be OK. When you hear sound by pressing any key after full start (audio resources are OK), starting style work too ...

... and when after some period (~ 1 minute) Audya stops generating sound and "freeze" - It seems to be the problem with USB chip on board (probably damaged with electrostatics).

Internally Audya "think" are connected via USB to computer and stops working.

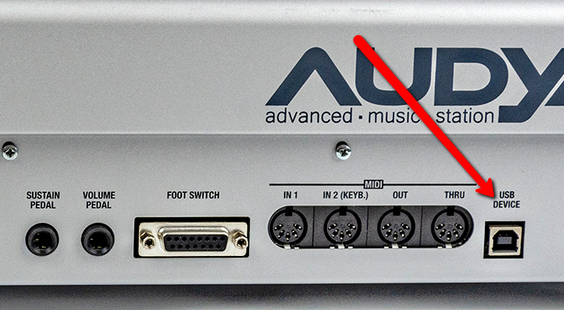

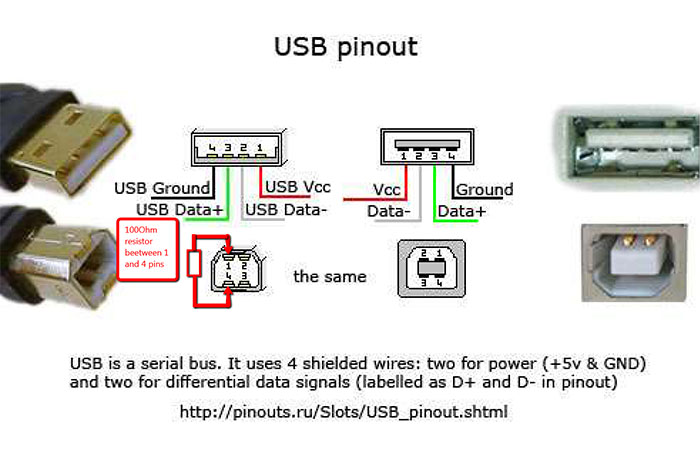

Solution is put in pins 1 and 4 100Ohm resistor (USB connector on back side). More on this diagram:





You can make this special cable (from old USB printer cable by cutting USB PC connector) or buying USB male conector https://www.taydaelectronics.com/usb-type-b-female-connector-5790.html and put 100Ohm resistor on it.

Otherwise USB connection with PC work normally (standart printer USB cable) so don't worry about function.

With this small modified connector Audya work (playing) without sound interuption and NO FREEZE!

Hope will help you too ... (Another solution I thing is only new Audyas motherboard)


Edited by country_man (05/22/19 11:34 PM)
_________________________
Nord Stage 2, Ketron SD90, Audya 4+5, SD1000, Roland E-A7, SC8820, Korg microarranger, Alesis Vortex, TC Helicon VL2, Soundcraft Ui12, JBL EON ONE (2), RCF312A

Top
#470225 - 05/23/19 02:10 AM Re: Audya urgent problem [Re: Sandi]
Sandi Offline
Member

Registered: 04/12/10
Posts: 141
Thanks. I will try and let you know.
I really appriciate your help.

Top
#470242 - 05/23/19 07:11 AM Re: Audya urgent problem [Re: Sandi]
Sandi Offline
Member

Registered: 04/12/10
Posts: 141
Unfortunatelly that is not the problem. After checking the Hdd(everything Ok with it) now on the startup said init Phase error and that's it. On the F1 test DSPO scribe BOOSTRAP Error all others ok. No sound at all.

Top
#470554 - 05/29/19 02:33 PM Re: Audya urgent problem [Re: Sandi]
Sandi Offline
Member

Registered: 04/12/10
Posts: 141
Hello!
So I send the keybord to Ketron. It's not the hard disk. I will let you know so that someone will have this problem know what to do.

Top
#470744 - 06/04/19 07:31 AM Re: Audya urgent problem [Re: Sandi]
Sandi Offline
Member

Registered: 04/12/10
Posts: 141
Hy to all!
the problem was 1 Ram inside the soundbord.They change it and now I wait they send it back to me.
Thank you all for the help and assistance.

Top
#470758 - 06/04/19 02:14 PM Re: Audya urgent problem [Re: Sandi]
hbinfo2001 Offline
Member

Registered: 08/23/04
Posts: 649
Loc: Quebec Canada
Great news!
_________________________
ketron sd9,Technics KN7000,monitors Adam tv8, Yamaha Mixer

Top
